A tight-tolerance precision injection molded component is not produced by one machine setting or one experienced operator. It is the result of four controls working together: the design of the part, the design of the mold, the behavior of the selected resin, and the repeatability of the molding window. Remove any one of those four and the dimensions will drift, no matter how modern the press is.

This guide is written for OEM engineering and sourcing teams who must specify, qualify, and audit tight tolerance injection molding for electronics, automotive, medical, and industrial equipment programs. It explains how tolerance decisions are actually made, how ABS, PC, POM and Nylon behave differently inside that decision, and how DTG TECH CO., LTD. controls dimensional results on its Precision Injection Molded Components line, model DTG-PIM-003, through documented dimensional inspection and first article inspection.

Problem Definition: A Blanket Tolerance Is Not a Specification

Most tolerance failures begin on the drawing, long before a mold is cut. When a drawing carries one blanket tolerance across an entire part, two things usually happen. First, cosmetic and internal surfaces are over-specified, which pushes up tooling cost, narrows the molding window, and increases scrap without improving the product. Second, and more damaging, the three or four dimensions that genuinely control assembly and function are never identified, so nobody measures them and nobody protects them.

Precision molding works the other way around. DTG-PIM-003 is defined by dimensional control according to the customer's engineering drawings, which means tolerance is applied feature by feature rather than to the part as a whole. A precision program normally sorts dimensions into four groups:

• Assembly-critical dimensions — the features that locate a PCB, a display module, a mating half, or a screw boss. If these move, the product does not go together on the line.
• Functional dimensions — snap fits, sealing surfaces, moving clearances, and load-bearing features that must work through thousands of cycles.
• Cosmetic dimensions — visible gaps, parting lines, and surface finish requirements that customers and end users can see.
• Structural dimensions — ribs, bosses, and walls where a wider tolerance is perfectly acceptable and where money can be saved.

A supplier that treats all four groups the same will over-engineer the tool and still ship parts that fail assembly. The classification step, not the machine tonnage, is what decides whether a tight-tolerance program is achievable at a sane cost.

Industry Background: Why Precision Demand Keeps Rising

The commercial pressure behind precision molding is straightforward. The global injection molded plastic market was valued at USD 324.98 billion in 2024 and is projected to grow to USD 435.74 billion by 2035, according to Market Research Future. China remains the center of gravity for the equipment serving that demand: industry analysis published in 2025 estimates that China produces roughly 65% of the world's injection-molding machines and accounts for about 60% of global export volume.

Two forces are pushing tolerances tighter inside that growth. The first is metal replacement. Automotive OEMs are substituting metal parts with engineered thermoplastics, a shift that Grand View Research links to 34% of domestic injection molded component demand in major US hubs — and metal replacement only works when the plastic part holds its dimensions across heat, vibration, and time. The second is packaging density. Electronics housings must align with PCB assemblies, sensors, switches and display modules; medical components must hold clean, defect-free surfaces with stable batch-to-batch material consistency; industrial parts must survive dust, repeated assembly, and thermal stress in workshop conditions.

Sector-specific quality systems have followed the same curve. IATF 16949 is the specialized quality standard for injection molders serving the automotive industry, emphasizing defect prevention and waste reduction, while ISO 13485 is the benchmark quality management system for medical device injection molding, requiring structured documentation. Both standards push suppliers toward repeatable, documented processes instead of end-of-line inspection — which is exactly what a tight-tolerance program requires.

Material Selection for Tight-Tolerance Components

The resin decides how much of the tolerance you can actually keep. Two suppliers can run the same tool on the same press and produce different dimensional outcomes simply because one controlled drying, melt temperature and shrinkage and the other did not. DTG-PIM-003 is molded from ABS, PC, POM, Nylon and other engineering plastics, and the selection is confirmed before production rather than assumed.

The Four Control Points Where Tolerance Is Won or Lost

1. Part design and DFM review

Tolerance is partly designed in. Wall transitions, rib thickness relative to the main wall, gate location and cooling layout determine how evenly the part shrinks and how much it warps. A DFM analysis performed before tooling catches the geometry that would otherwise force a wider tolerance.

2. Mold design and tooling

The tool is the physical definition of the part. DTG controls mold structure, cavity layout, gate design, runner system, surface texture and tooling material as a defined scope, with DFM analysis, mold design review, T1 trial molding, sample inspection, and a formal mold approval process before release to production. Mold design and tooling is quoted at 15–45 days depending on mold size, complexity, and material requirements.

3. Molding process and material batch control

Once the tool is correct, repeatability comes from the process window. DTG applies material confirmation and molding parameter control as standard quality control steps, because a resin batch that differs in moisture content or melt flow will move dimensions even when the press settings are unchanged.

4. Measurement and documentation

A tolerance that is not measured is not controlled. Dimensional inspection and first article inspection are the two documented verification steps applied to Precision Injection Molded Components, supported by visual inspection and final quality check across the wider program.

Step-by-Step: From Drawing to Approved First Article

A precision injection molding project runs on a fixed sequence. Skipping a step does not save time; it moves the cost to the customer's assembly line.

1. Drawing and requirement review. The customer's engineering drawings, material expectations, and application environment are reviewed so that dimensional control is defined feature by feature.
2. DFM analysis and design feedback. Geometry, wall thickness, draft, gate position, and shrinkage risk are evaluated, and design optimization suggestions are returned before tooling starts.
3. Mold design and review. Mold structure, cavity layout, gate design, runner system, surface texture, and tooling material are frozen and reviewed. Quoted lead time: 15–45 days depending on mold size, complexity, and material requirements.
4. Tool manufacture and T1 trial molding. The first trial shot establishes the actual process window and produces the samples used for validation.
5. Sample and dimensional inspection. Prototype and sample parts pass sample inspection, dimensional checking, functional testing, and visual inspection before approval.
6. First article inspection (FAI) and mold approval. The critical dimensions are measured against the drawing; if a sample does not conform, mold modification and sample improvement support are available before the tool is released.
7. Mass production with in-process control. In-process inspection, appearance inspection, dimensional inspection, and pre-shipment inspection run alongside production. Standard production lead time after sample approval is 20–35 days, depending on order quantity and material availability.
8. Pre-shipment review and shipment coordination. Final checks are completed and order tracking, production feedback, and shipment coordination continue through delivery.

Use Cases: Precision Molding in Production

Precision capability is easier to judge from completed projects than from a capability statement. The following projects illustrate what tight tolerance and stable appearance control look like in real production.

• Electronics — projector housings. A global electronics manufacturer received custom PC+ABS injection molded housings for projector protective enclosures, with mass production of 30,000–50,000 units per batch and a design service life over 5 years. The project delivered stable dimensions and appearance quality, and it is the type of work where tight tolerances for PCB and display alignment decide whether the unit assembles cleanly.
• Lighting — high precision optical lenses. 50,000 injection molded acrylic optical lenses for commercial LED lighting were delivered on schedule, achieving 98% transparency through high precision molding and strict surface quality control, and passing customer inspection.

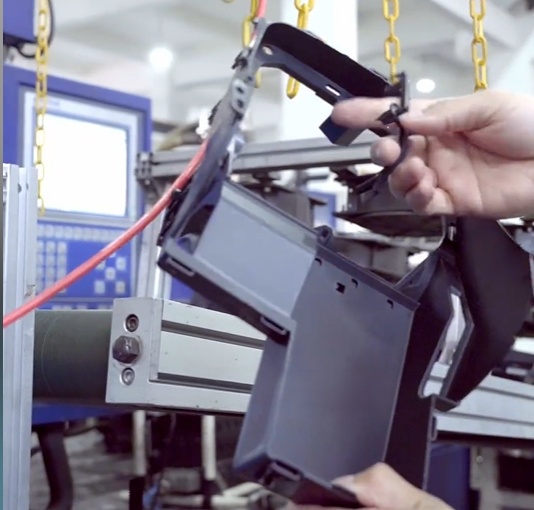

• Automotive — lighting system component. A mold was designed for a 500,000-shot production requirement, supporting mass production batches of 10,000–50,000 units, using flame-resistant ABS with complex rib structures and dimensional stability held over a design service life above 10 years.
• Consumer and mobility — bicycle chain protection cover. Surface polishing, gas mark, and deformation issues were resolved through mold optimization and process improvement before mass production, then full production orders were launched after T1 sample confirmation for a product with a design service life over 3 years.

Comparison Table: Precision Requirements by Application Scenario

The same tight-tolerance process serves different industries, but the requirement profile changes by scenario. This table summarizes what each application actually demands, which is the correct starting point for a project-fit discussion.

Read the table from right to left when planning a program: the material and the quality emphasis decide which dimensions are critical, and only then does the tolerance map make sense. Automotive parts carry requirements that map to IATF 16949, while medical device components fall under ISO 13485; both push the supplier toward documented process control rather than final inspection alone.

Frequently Asked Questions

Conclusion: Tolerance Is a System, Not a Setting

Precision injection molded components are judged on the dimensions that matter and on the supplier's ability to repeat them. The four control points — design, tooling, process, and measurement — are what make tight tolerance injection molding predictable for OEM electronics, automotive, medical, and industrial programs, and they are the reason a tight-tolerance part should never be quoted from a blanket tolerance line alone.

DTG TECH CO., LTD. has built its Precision Injection Molded Components line (DTG-PIM-003) around that system since its founding in 2002: ISO-certified operations, a 2,500 m² facility in Xiamen, a 25-engineer R&D team, engineering-grade resin processing across ABS, PC, POM and Nylon, and documented dimensional inspection and first article inspection on precision projects. With 100% of output exported to the USA, Europe and India, the process is designed for buyers who cannot afford to discover a tolerance problem after the container has shipped.
